The Power of Three

Scheimpflug Corneal Tomography

With the VX130 you can measure the posterior surface of the cornea for early diagnosis and treatment of progressive eye diseases such as keratoconus.

Placido Ring Corneal Topography

Placido ring technology is the gold standard for corneal topography, with the VX130 you can get valuable data for contact lens fitting, laser vision correction, and pre-op planning without slowing down your pre-test room.

Shack-Hartmann Wavefront Aberrometry

With our patented Powermap® Wavefront technology, not only can the VX130 measure high and low order aberrations, but when combined with our patient acuity simulation, you can show them exactly how much of their vision is correctable with glasses and contacts.

Videos

Dr. Adam Farkas discusses with Matt Vulich, Vice-President of National Accounts on how the Visionix VX100 Series Multi-function Wavefront Anterior Segment Analyzers can help in a telehealth environment.

Dr. Paul Karpecki, OD, FAAO of Kentucky Eye Institute

Dr. Paul Karpecki, OD, FAAO of Kentucky Eye Institute

Dr. Paul Karpecki, OD, FAAO of Kentucky Eye Institute

Dr. Paul Karpecki, OD, FAAO of Kentucky Eye Institute

Dr. Paul Karpecki, OD, FAAO of Kentucky Eye Institute

Dr. Pamela Lowe, OD, FAAO of Professional Eye Care Center in Niles, IL

Key Features

ANTERIOR AND POSTERIOR CORNEAL TOMOGRAPHY

The VX130 offers complete analysis of the anterior and posterior surface of the corneal, making it ideal for keratoconus and Ectasia screening and monitoring.

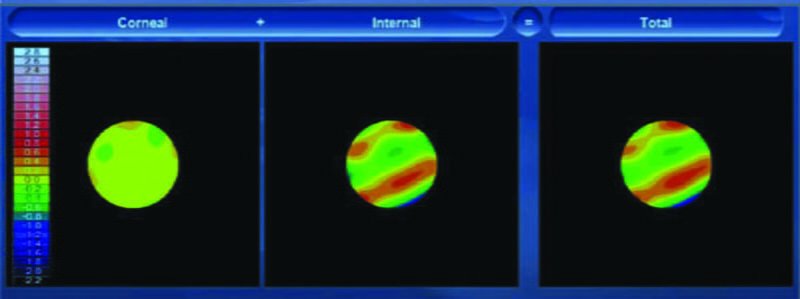

POWERMAP® SHACK-HARTMANN WAVEFRONT TECHNOLOGY

The unique Powermap® sensor analyzes wavefront distortions at the pupil exit after crossing optics. With over 1500 measurement points, this allows for a complete view of both low and high order aberrations and enables measurement of pupil diameters as small as 2mm.

RETRO-ILLUMINATION

Using infrared retro-illumination, the VX130 provides a detailed view of the eye which is helpful for identifying cataracts, vitreous opacity, scars, and other serious eye problems.

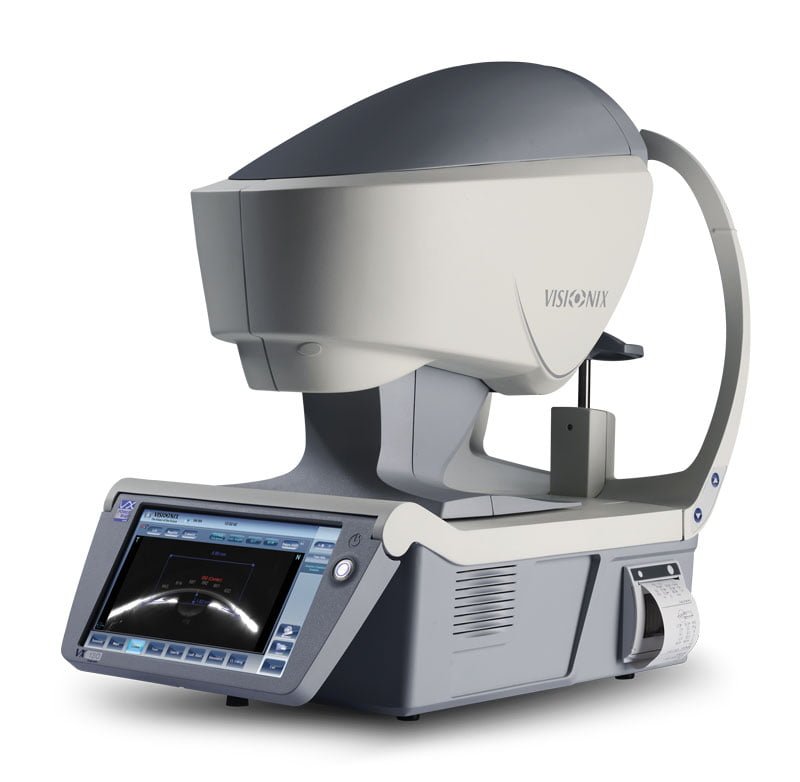

MULTI-DIAGNOSTIC INSTRUMENT

By combining a Wavefront Aberrometer, Pachymeter, Corneal Topographer, Autorefractor, Keratometer, and Non-Contact Tonometer combined with Anterior Chamber Analysis into one unit, you save on cost, space, and increase your efficiency in your practice making this instrument an easy purchase.

FULLY AUTOMATIC 3D ALIGNMENT, TRACKING, AND FOCUSING

The VX130 is completely automated, requiring very little input from the operator. After the measurement process begins, the unit will align, track, focus, and automatically take measurements with high accuracy, reliability, and speed.

Model Feature ComparisonVX130+VX120+ Dry EyeVX120+VX110VX90
Autorefraction / KeratometryYesYesYesYesYes
Shack-Hartmann Wavefront TechnologyYesYesYesYes
Fully Automatic MeasurementYesYesYesYes
Placido Ring Corneal TopographyYesYesYesYes
Corneal AberrometryYesYesYesYes
Ocular AberrometryYesYesYesYes
Retro-IlluminationYesYesYesYes
Anterior Chamber AnalysisYesYesYes
PachymetryYesYesYes
Scheimpflug ImagingYesYesYes
Non-Contact TonometryYesYesYes
Anterior / Posterior Corneal TomographyYes
Dry Eye Anterior Imaging ModuleYes

More Features

  • Placido Ring corneal topographer with 100000 measurement points
  • High density Shack-Hartmann wavefront aberrometry up to 1500 points
  • Scheimpflug imaging corneal tomography and pachymetry
  • Measures pupils as small as 2mm
  • Automatic right / left eye movement
  • Autotracking
  • Automeasurement
  • Autofocusing
  • Based on Wavefront technology
  • Retro-illumination – spot aberrations in the IOL and cornea scratches easily
  • Global view of refraction aberrations EMR and VX55 digital refraction compatibility

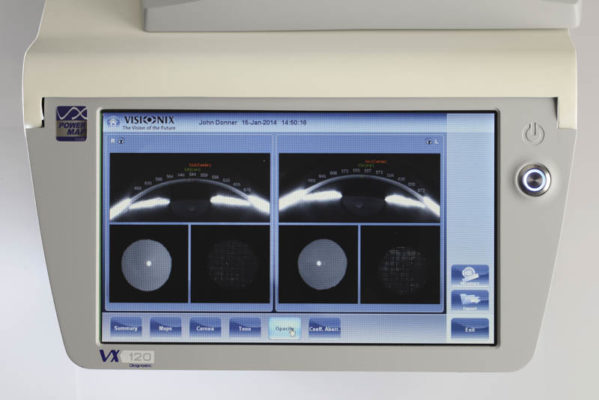

  • 10.4″ Color Touchscreen interface
