FEATURED Edging System

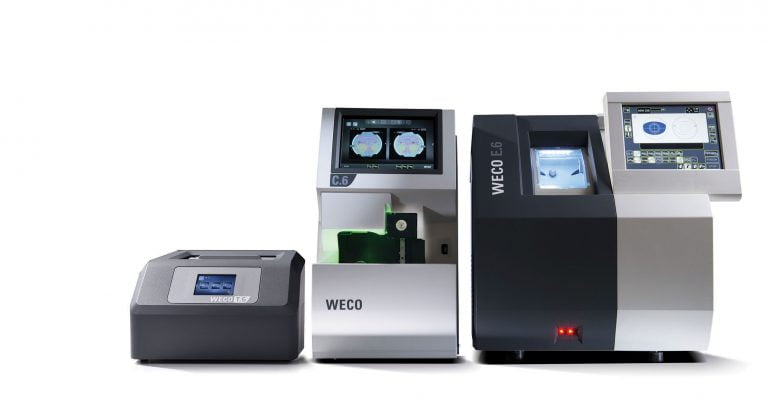

E.6 Series Patternless Lens Edgers
The WECO E.6 Series brings the best technology in the industry to the table with Gravitech® Tracing Technology, integrated shelf beveling and milling features, and wavefront progressive lens analysis. With the new SD (Smart Design) Interface, you can create incredibly complex shapes for your premium customers.
Other Patternless Edging Systems

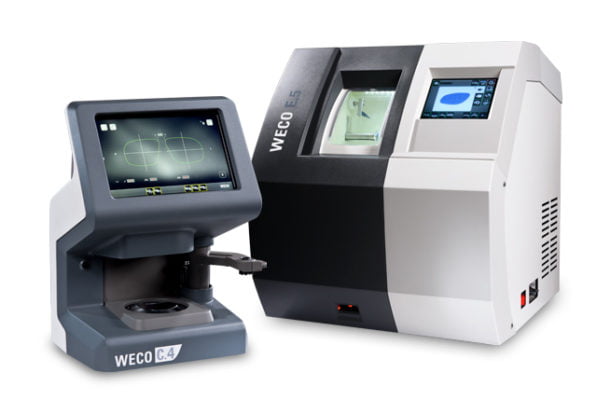

E.5 Series Patternless Edgers
Pairing the right Tracer / Blocker to your edging equipment should not be taken lightly, there are many factors that will determine what is the right device for your lab such as the experience level of your operator or how much volume you do in a day. That is why Briot has made a great effort to offer decentration devices that cater to your needs.

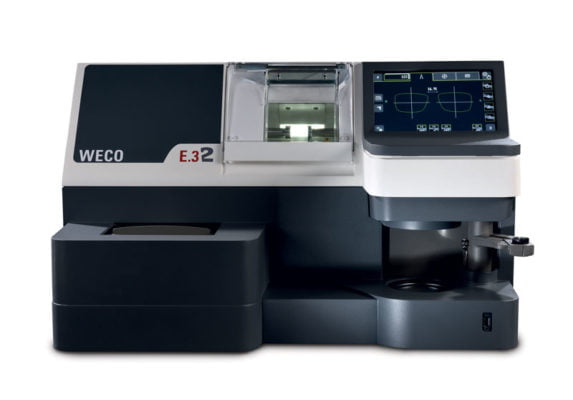

E.3-2 All-in-one Finishing Lab
The Briot Emotion 2 is an all-in-one edging system that includes Edging, Blocking, Drilling, Grooving, and Tracing in a single unit. With the Emotion 2 we have added our game-changing patented optical tracing technology, Gravitech®. With it, you can accurately scan a demo lens with perfect 1:1 shape reproduction in around 4 seconds. With the Emotion 2, the perfect fit is possible.

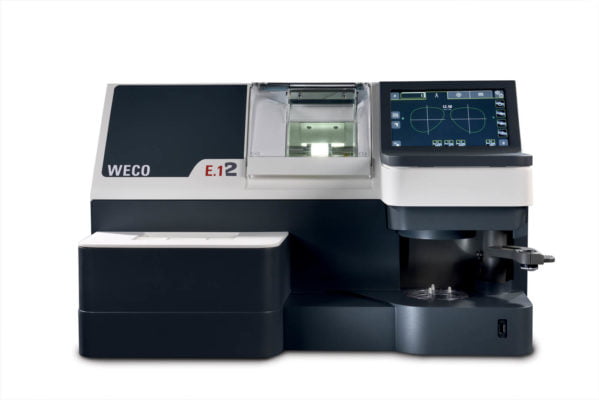

E.1-2 All-in-one Finishing Lab
The WECO E.1-2 is an all-in-one patternless edging system that can satisfy all the core needs of a finishing lab. It offers grooving, safety bevel, high luster polishing, and an advanced edging cycle to tackle difficult super hydrophobic lenses. It’s most innovative feature is the new Gravitech® 3D Non-Contact tracing system, cutting the time to trace a lens to under 4 seconds! The addition of drilling makes the WECO E.1-2 the right fit for your lab.
| ||E.6||E.6s||E.5||E.5s||E.3-2||E.1-2||E.1-2 Groove|
|Super-Hydrophobic Lens Cycle||Yes||Yes||Yes||Yes||Yes||Yes||Yes|
|Small Eye Sizes <21mm||Yes||Yes||Yes||Yes||Yes||Yes||Yes|
|Color LCD Display||Yes||Yes||Yes||Yes||Yes||Yes||Yes|
|Touch Screen Interface||Yes||Yes||Yes||Yes||Yes||Yes||Yes|
|High Luster Polish||Yes||Yes||Yes||Yes||Yes||Yes||Yes|
|Drilling||Variable 30°||Variable 30°||Variable 30°||Variable 30°||Fixed 10°||Fixed 10°|
|Integrated Bar Code Scanner||Yes||Yes||Yes||Yes|
|High Volume Edging||Yes||Yes||Yes||Yes|
|Wrap Frame Processing||Yes||Yes||Yes|
|Advanced Motor Controls||Yes||Yes|
|Chemistrie® Processing Interface||Yes||Yes|
|Smart Design Milling||Version 2.0|
